OEM WiFi Security Camera: Custom Firmware For Private Cloud Integration & ONVIF RTSP Support
OEM WiFi Security Camera: Custom Firmware For Private Cloud Integration & ONVIF RTSP Support
System integrators and vision platform developers often struggle with off-the-shelf IP cameras. Standard camera firmware locks devices to the vendor’s public cloud, limiting deep integration with proprietary VMS or private cloud platforms. Our engineering team supports full firmware customization for 3MP WiFi bullet security cameras, tailored for commercial vision platform projects.
Core Custom Firmware Capabilities
1. Custom Cloud Provisioning
We modify camera firmware to connect directly to your private OWS-style cloud platform for zero-touch device provisioning. Cameras can be pre-programmed to register, authenticate and report status to your cloud server on first boot.
2. Permanent Unique Device Identity
Burn immutable device identity into firmware. The unique ID cannot be erased or overwritten after manufacturing, ensuring stable asset management for large-scale deployments.
3. Disable Physical Factory Reset Function
We can remove or lock the hardware factory reset trigger. Once provisioned to your cloud, end-users cannot reset the camera back to factory default via physical button, improving system security and preventing unauthorized re-binding.
Technical note: This customization requires firmware patch and GPIO control modification. We will evaluate hardware limitations before project kick-off.
4. ONVIF & RTSP Streaming Support
Cameras retain standard ONVIF discovery and RTSP real-time video stream. Your vision platform can pull H.265 video stream, PTZ control, motion & sound detection events without custom decoding work. Compatible with most VMS software.
5. Secure Encrypted Firmware OTA Updates
Custom encrypted OTA upgrade pipeline. Firmware packages are signed and verified before installation to prevent tampering or malicious firmware flashing. You can push firmware upgrades via your own cloud server.

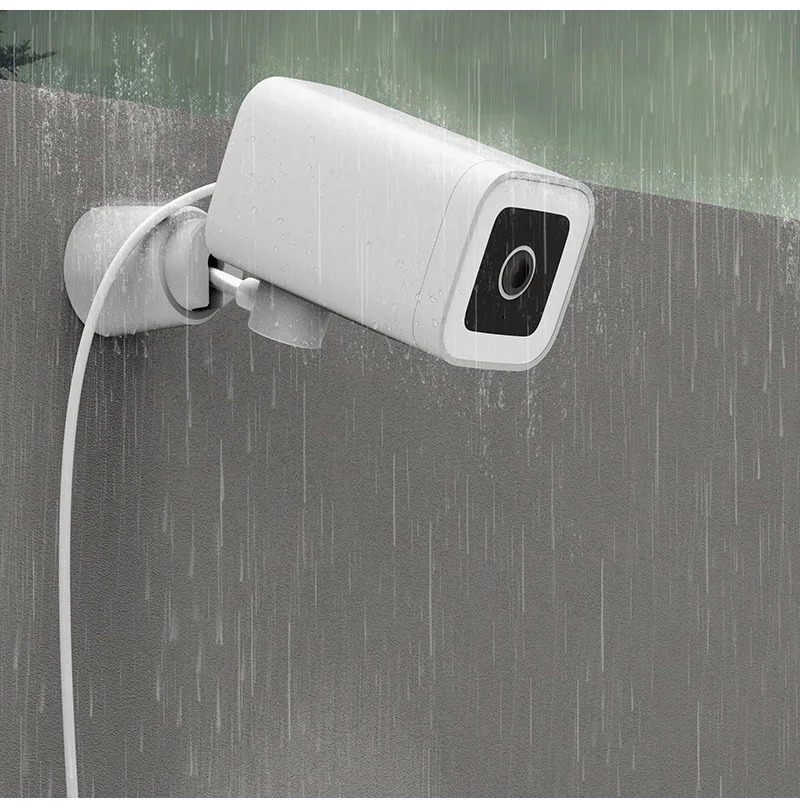

Camera Hardware Spec Base
- 3MP CMOS sensor, H.265 video compression
- IP66 bullet camera, indoor & outdoor installation
- Fixed 3.6mm lens (optional 2.8–12mm varifocal lens), F1.0 aperture
- WiFi connection, max 128GB Micro SD card local storage
- Built-in mic, two-way audio, built-in siren, night vision, motion & sound detection
- Pan-tilt function, 90° wide viewing angle
OEM Commercial Overview
We offer full OEM service including custom logo printing, packaging customization and firmware re-engineering. Firmware customization has a one-time NRE engineering cost and minimum order quantity (MOQ). The exact NRE fee will be confirmed after reviewing your cloud API and provision protocol
Who This Custom Camera Solution Fits
- Vision platform developers
- VMS / cloud surveillance solution providers
- System integrators for commercial & industrial monitoring
- Companies building private cloud-based camera management systems
If you need customized firmware IP cameras for your cloud vision platform, send us your API documentation for our R&D feasibility assessment./contact-us.htm
